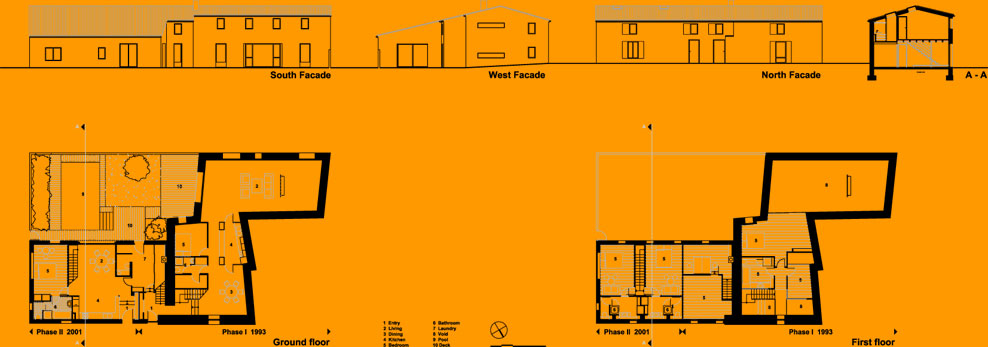

HOUSE A, La Rochelle, France, Phase I 1993, Phase II 2001







RESPONSIBILITY: Architecture, Interior Design, Landscaping, Construction Management
PROJECT SIZE: 160 m2 + 105 m2
PROJECT COST: n.c.
DESCRIPTION:

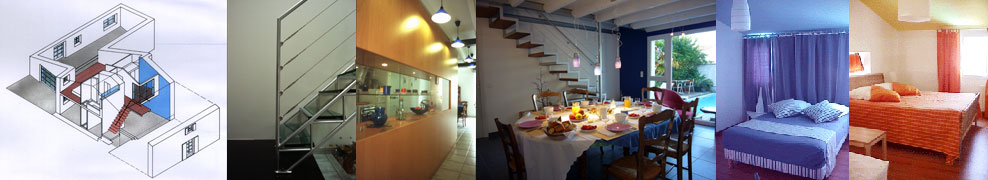

Phase I. Barn conversion with attached workshop. The street facade with small windows – the house is the middle building of an intact line of village houses – remains nearly unchanged to keep in line with neighbourhood buildings. The interior is completely hollowed out and lowered in order to allow a second level. Additional daylight filters through double height spaces via roof lights to the ground floor. The use of glass steps for a staircase and connecting walkway increases the internal transparency.





Areas are visually linked by wall openings. Warm patterns of primary colours enrich the interior spaces. A courtyard with decks and pool completes the dwelling.
Phase II. Eight years later the client turns the workshop into a B&B. This alteration was already anticipated in the initial design. The interior steel structure is rearranged and adapted, already envisaged windows and doors are reopened, facilities installed. A warm colour scheme is employed influenced by the surrounding landscape.




ROMAN BATH MUSEUM, San Boi de Llobregat – Barcelona, Spain, 1990–1992, Arch. Arriola & Fiol



RESPONSIBILITY: Project Leader Architecture
TOTAL PROJECT COSTS: 1,5 m Euro
DESCRIPTION:

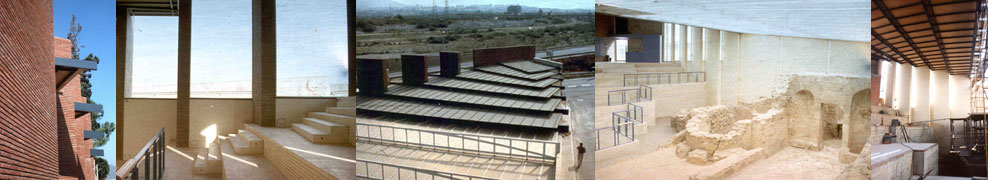

During excavation work in the village San Boi de Llobregat near Barcelona one of the best preserved remains of a Roman bath from the
2. Jh.(BC) in Catalunia and a manufacturing plant for amphoras was discovered several meters under today's street level. In order to shelter the ruin structures
and mosaics and also to make them accessible for the public a terrace like



museum building was constructed obove. For the vertical walls intensive use was made of dark red handmade and contrasting white mechanically made bricks. The roof is a steel construction covered opaque above the grades, transparent above the ruins. The individual stages serve as seat rows for groups of visitors.
